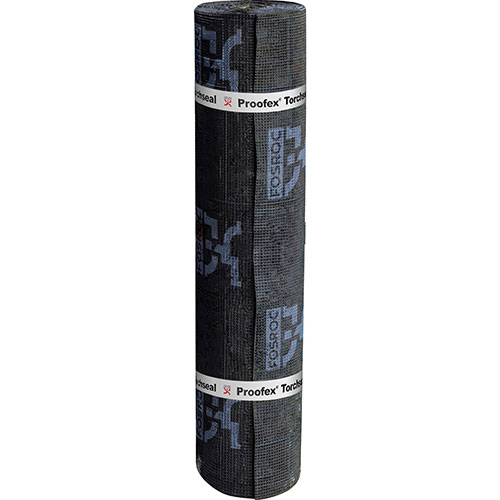

Proofex Torchseal A600 FC007013-UNIT
Proofex Torchseal A600
Torch applied 3mm thick, reinforced polymer - bitumen waterproofing membrane. Used as a continuous waterproofing membrane for foundations, basements and tunnels, particularly as the base layer of multi-layer systems.
- Overview
- Key Properties
- Test Certificates
- Application Guides
- Spec Clause
- Case Studies
- Detail Drawing
- Fact Sheet
- Brochures
Typical Applications
- Waterproofing membrane for foundations, basements and tunnels, particularly as the base layer of multi-layer systems
Advantages
- APP polymer modified -specifically selected for Australian conditions
- Handles ponding and permanently wet conditions
- No curing times. Instantly waterproof
- Uniform thickness eliminating likelihood of uneven application possible with liquid applied membranes
- Excellent stability at both high and low temperatures
- Excellent durability and flexibility
- Flexibility at low temperature (EN1109) : -10°C
- Impermeability to water (EN1928 B method) : ≥ 60 kPa
- Longitudinal Tensile elongation (EN12311 1) : 40%
- Longitudinal Tensile strength (EN12311 1) : 700 N/50mm
- Thickness /Mass : 3mm
- Transverse Tensile elongation (EN12311 1) : 45%
- Transverse Tensile strength (EN12311 1) : 450 N/50mm
Proofex Torchseal-Edge Protection Membrane over Parapet
Proofex Torchseal-Detailing Metal Post Support-Before Membrane Installation
Proofex Torchseal-Detailing Metal Post Support-After Membrane Installation
Proofex Torchseal-Single Layer Vertical Upward Termination Pressure Seal
Proofex Torchseal-Single Layer Vertical Upward Termination Overflashing
Proofex Torchseal-UV Exposed Roof-Parapet-Deck
Proofex Torchseal-UV Exposed Roof-Single Layer
Proofex Torchseal-Insulated Roof Podium Deck-IRMA
Proofex Torchseal-2 Layer over Insulated Roof Podium Deck
Proofex Torchseal-2 Layer Landscaped Roof-Water Shedding
Proofex Torchseal-2 Layer Landscaped Roof-Water Retaining
Proofex Torchseal-Vented 2 layer Roof System for Wet Substrate
Proofex Torchseal-Construction Joint Detail for 2 Layer system
Proofex Torchseal-2 Layer Vertical Upward Termination Detail with Pressure Seal
Proofex Torchseal-2 Layer Vertical Upward Termination Overflashing
Proofex Torchseal-Edge Protection Membrane over Parapet
Proofex Torchseal-Horizontal Membrane Termination Detail
Proofex Torchseal-Trafficable Roof-Podium Deck-2 layer
Proofex Torchseal-Trafficable Roof-Podium Deck-Single Layer
Proofex Torchseal-Lap Joint Detail
